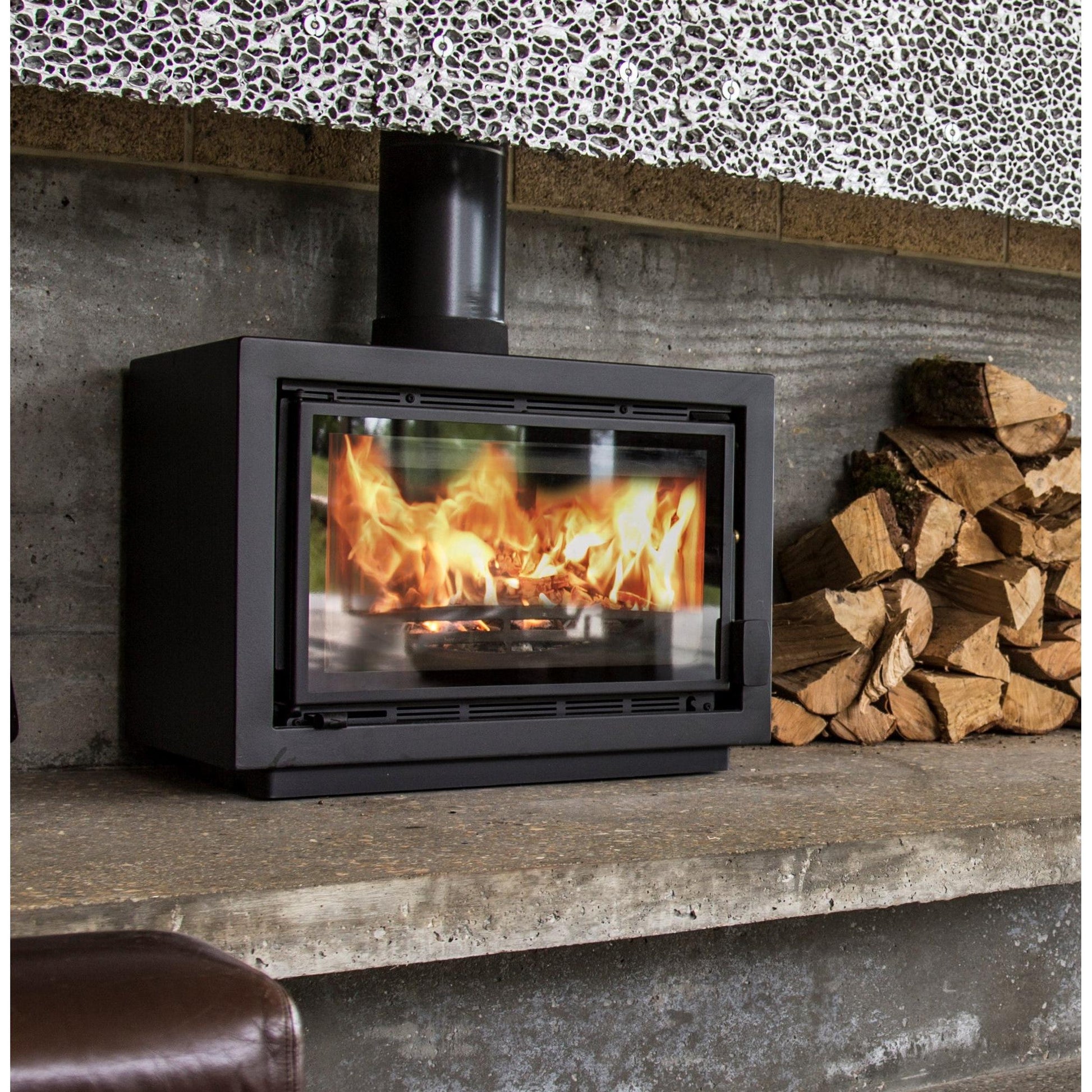

Charnwood Bay BX Inbuilt Wood Fireplace

4.2kW

Nominal Power Output

40-60sqm

Heatable Area

0.8g/kg

Emissions

The Charnwood Bay BX is a sophisticated wood heater that combines exceptional performance with timeless design. With its sleek, modern lines and robust build, it is engineered to deliver outstanding heat output while enhancing the aesthetic of any living space. Ideal for medium size homes, heating up to 160+ m2, ensuring consistent warmth and comfort throughout your home.

The Charnwood Bay BX is ideally suited for high-efficiency homes, providing optimal heat output while minimizing energy consumption, making it an excellent choice for maintaining a comfortable and sustainable living environment. Offering flexible installation options, allowing it to be seamlessly integrated into a concrete bench or mounted on one of its stylish optional stands for a sleek, modern look.

Specifications

Rated Output - Up to 160+m2
Efficiency - 68% (71% with Insulated Flue)
Emissions - 0.8grms
Flue Outlet - Top Only 6” dia.
Max Log Length - 463mm (18")
Min Distance to Combustibles -  Side: 200mm, Rear: 100mm, Corner: 70mm, Hearth front of unit: 300mm

Flue Options

6" Fully Insulated Room Sealed Flue Kit

Accessories

Bench Stand

Store Stand

Centre Stand

External Air Kit (includes Ducting)

Downloads

Full Product Catalogue (PDF)

Installation & User Manual (PDF)

Installation

Need someone to install your fireplace? Find out how we can help.

Flueing and Accessories

• Flueing or accessories are not included in the price
• Before placing your order please contact our sales team on 02 8358 6000 to discuss your requirement
